Takoto Hotend with M7x16 Mounting (E3D Titan Aero compatible)

Regular price £98.00 Sale

 Please note that this is a "bare" or "vacant" Hotend - it does not include an extruder, heater cartridges, temp sensor, fan, nozzle. Specifications Some of the advantages...

Upgrades

Takoto

£98.00

Category:

Tags:

files/Product_page_promises_smaller.png

 Please note that this is a "bare" or "vacant" Hotend - it does not include an extruder, heater cartridges, temp sensor, fan, nozzle.

Specifications

Some of the advantages of Takoto include:



  • All metal (tested to >320°C)
  • Dual vertical heater cartridges (standard Ø6.0 x 20mm, any wattage that your machine can support), clamped in for good thermal transfer
  • Standard Ø3.0 x 15mm temp-sensor (thermistor or PT100/1000) clamped between the heaters & the nozzle for accurate sensing
  • Standard E3D Volcano nozzle, because they are readily available in various metals & work well
  • Very rigid structure via 3 titanium hollow pillar mounts, because crashes happen and threaded heat-breaks can bend, tear out, or break
  • The heat is retained to the melt zone by the titanium feed tube & copper heat sink, significantly limiting heat-soak to the filament in the feed mechanism
  • Very well cooled via modular fan options, and design protected for future liquid cooling
  • Thermally protected with a high-temperature silicon sock to minimise heat loss (increase efficiency) & for safety
  • Designed for mounting to Bondtech BMG-M; Bondtech LGX; Titan Aero; Hemera; Raise 3D N1; ...  with designs for alternative mounting options in future

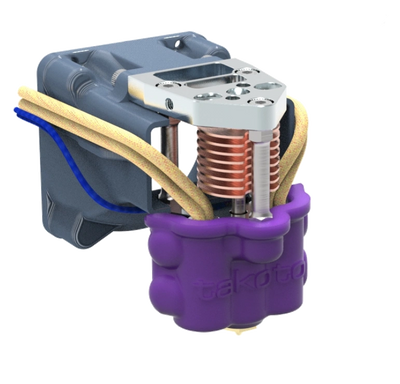

Takoto Structure

 Assembly of the Modix Dual-head configuration
